Step 1: Evaluate Diffuser Placement
• Find the best place to tap HVAC ductwork
• Make sure you tap the main duct, past the air handler.
• Keep in mind that the line can be tapped at a point that avoids vents in small spaces like administration offices. (This is important to avoid over-scenting smaller enclosed areas.)
• If you only want to scent a portion of the area that the air handler covers, find the branch in the duct that covers your target area to install the diffuser.
Step 2: Set Up Diffuser Machine

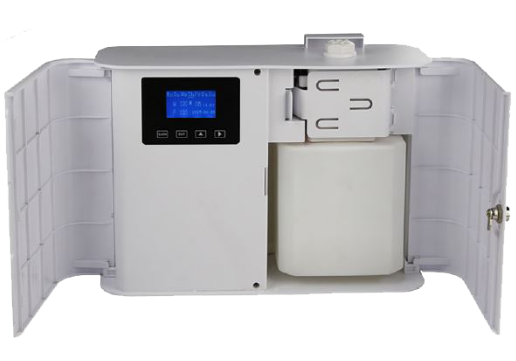

- Use the key to unlock the machine and open doors.
- Squeeze the plastic tab and swing open to allow access to the diffuser. Pull straight out.
- Screw the white aroma bottle onto the diffuser snug.
- Push the diffuser with bottle attached back into the machine.
- Swing the plastic arm back to cover the diffuser.

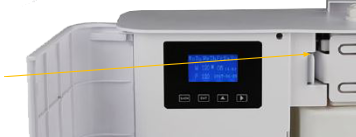

- Use the metal hose adaptor in the bag to screw into the hole on top of the machine. (Other cap is pictured)
- Attach hose to adaptor.
